2000w / 4000w Metal Laser Cutting Machine Stainless Steel 1530 / 1540

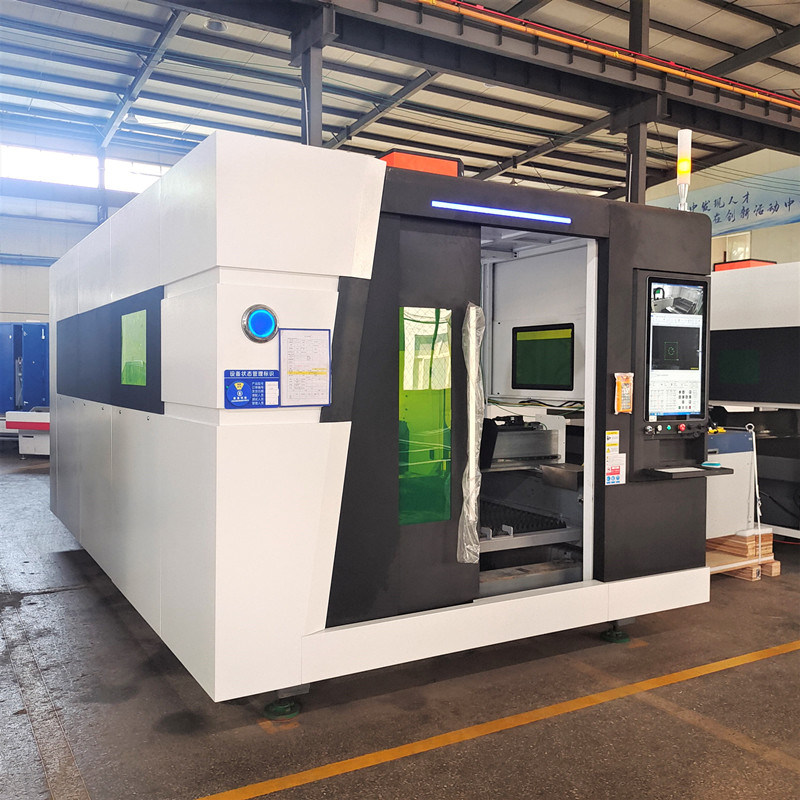

Large Image : 2000w / 4000w Metal Laser Cutting Machine Stainless Steel 1530 / 1540

Product Details:

Place of Origin:	China
Brand Name:	GAUSS
Certification:	CE
Model Number:	GS-1530F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	35500~63500
Packaging Details:	Plywood box package
Delivery Time:	12 days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Set per month

Contact Now

2000w / 4000w Metal Laser Cutting Machine Stainless Steel 1530 / 1540

Description

Laser Power:	4000W&6000W	Laser Head:	Raytools
Laser Source:	Raycus 4000&6000W	Control System:	Cypcut
Working Table:	1500x3000mm	Max Cutting Speed:	30m/min
Max Cutting Thickness:	45mm	Power:	380V 3 Phase 50~60Hz
High Light:	4000w Metal Laser Cutting Machine , 2000w Metal Laser Cutting Machine , Laser Cutting Machine Stainless Steel 1530

Fiber Laser Metal Cutting Machine 1500/2000/3000/4000w For Stainless Steel/Aluminum/Carbon Steel Cutting 1530/1540

Machine table Features:

1.Gantry dual drive, adopting advanced gear rack transmission structure. Equipped with grinding gear and rack, and through the precision collimator one time metering assembly. The machine will secure long-term high cutting speed, high precision transmission.

2,The machine table machined by large planomiller, with high temperature annealing twice, and high strength complete welding, customer will have long-term payback.

3, Applicable materials: stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, titanium and some metal plate and pipe.

4, Applicable industries: Glasses,jewelry,kitchen ware,chassis and cabinet,metal pipe,lamp&lanterns,metal ware,hardware, precision machinery,auto parts, elevator,nameplate, advertisement, electronics,toys and other industries. metal fiber metal laser cutting machine for 1mm 2mm 3mm 5mm 6mm Stainless Steel 1000w 5mm carbon steel fiber laser cutting machine cnc auto focus laser cutter.

Specificaiton


			Item
			Data

			Model
			GS-1530F

			Laser power
			4000/6KW Raycus made in China

			Working Table
			Sawtooth

			Maximum Idle Running Speed
			40m/min

			Cutting Thickness
			Stainless Steel≤20mm , Carbon Steel≤35mm

			Control System
			Cypcut Fastcut

			Driver system
			1300W Fuji servo motor

			Guider system
			HIWIN made in Taiwan

			Rack system
			YYC Taiwan

			Warranty time
			2 years

			Delivery time
			25 days

			Power supply
			AC380V/50HZ,

2000w / 4000w Metal Laser Cutting Machine Stainless Steel 1530 / 1540 0


Manufacturing Technique

			Fiber laser power from Raycus 6000W.

			Cutting torch from WSX or Raytools

			Controller from Raycus or Au3tech

			Imported ball screw or helical rack, works with Chinese leashine servo motor
